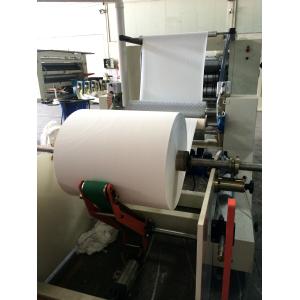

5.5KW Tissue Paper Production Line , N Fold Hand Towel Vacuum Pump Machine

Product Categories

Foshan Origin Machinery Co.,LTD

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 55KW Tissue Paper Production Line N Fold Hand Towel Vacuum Pump Machine
Brand: ORGINAL
Price: 1 USD

Brand Name : ORGINAL

Model Number : DM-180-190-200

Place of Origin : CHINA

MOQ : 1set

Price : Negotiable

Supply Ability : 3sets per month

Delivery Time : 80 days

Packaging Details : wooden pallet,20 feet container can load 1set

Unwinding : 2-3 sets

voltage : 380V,50Hz

folding type : N folded

working type : vacuum

place of origin : China(Mainland)

lamination unit : option

Voltage : 220V50HZ/380V50HZ

After-sales service provided : Engineers available to service machinery overseas

Power(w) : 5.5KW

Warranty : 12months

Raw material : virgin pulp

Production capacity : 150-200m/min

Contact Now

DM 180/190/200 Hand Towel Folding Machine

N fold Hand Towel Hot Sale Vacuum Pump Machine

MODEL	3T	4T	5T	6T
Max. Width of jumbo roll	630mm	840mm	1050mm	1260mm
Slitting knife	3sets in back and front	4sets in back and front	5sets in back and front	6sets in back and front
Vacuum pump	11Kw	11Kw	15kw	18.5kw
Main driving motor powe	4kw	4kw	5.5kw	5.5kw
Machine size	6×1.8×1.9m	6×2×1.9m	6×2.3×1.9m	6×2.5×1.9m
Machine weight	3500kg	4500kg	5500kg	6500kg
Machine speed	500-1000 sheet/min/lane
Max.diameter of jumbo roll	Ф1200mm(other sizes can be ordered)
Inner diameter of jumbo roll	Ф76.2mm(other sizes can be ordered)
Bankstand	2-6 jumbo rolls (should be ordered)
Embossing unit	Steel to rubber,steel to paper,steel to steel(should be ordered)
Lamination unit	Should be option
Edge embossing unit	Air bag type,bearing pattern(should be ordered)
Air pressure	0.8Mpa(user supplied)
